Description
chug pedal solar Solar CHUG High Gain Preamp With Gate Pedal – Infinite MusicCHUG HIGH GAIN PREAMP WITH GATE Welcome your CHUG Life. The Chug Pedal is born from years of testing thousands of pedals, amplifiers and plugins to create a unique perspective resulting in the Ultimate Metal Preamp Pedal, simply and effectively named: CHUG. SPECIFICATIONS PEDAL TYPE GAIN DISTORTION POWER CONNECTORS 5. 33MM BARREL POWER SUPPLY NOT INCLUDED (9VDC 100MA MINIMUM) CURRENT DRAW 85MA BATTERY NONE INPUT JACK 1 4'' OUTPUT JACK 1 4'' WATTAGE N

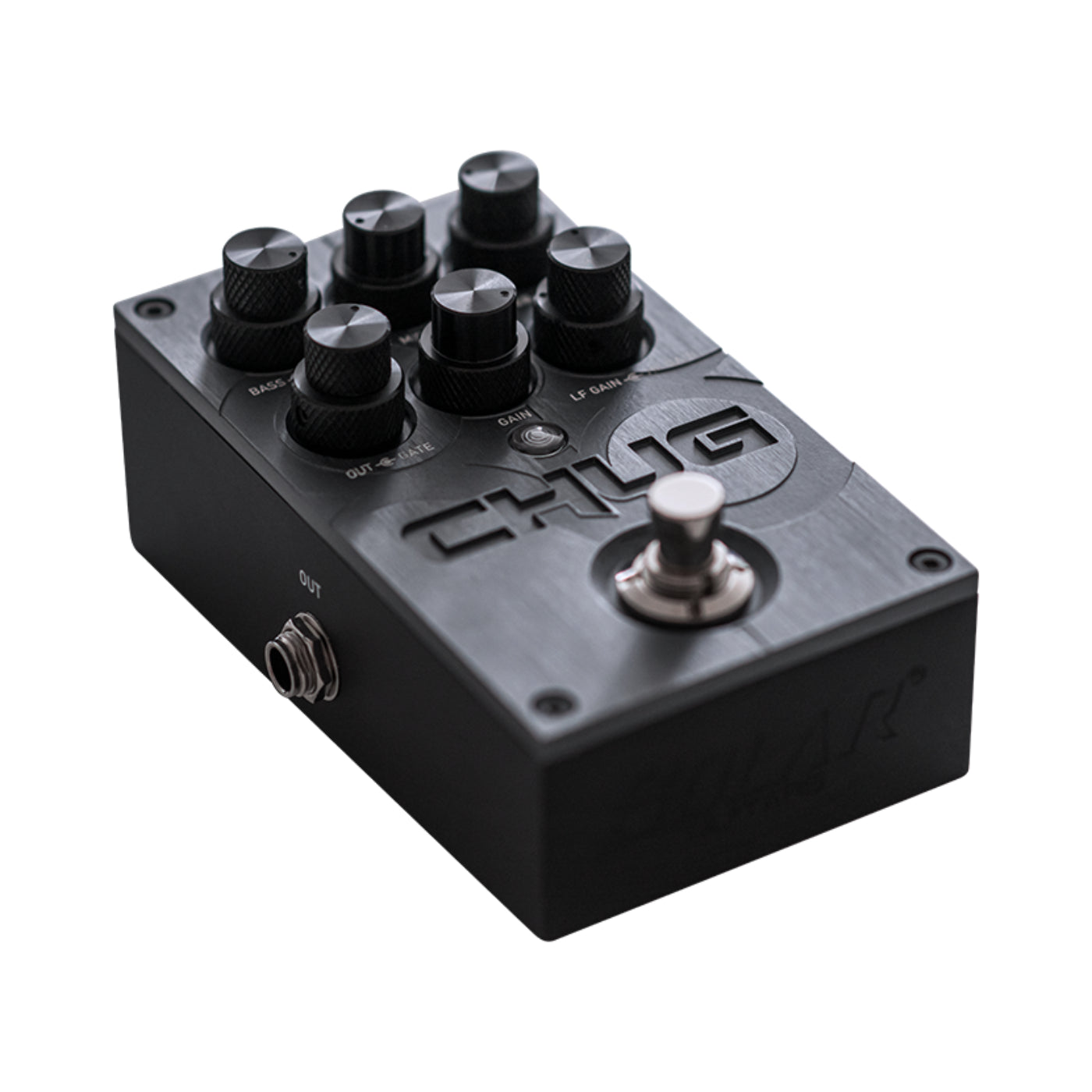

CHUG – HIGH GAIN PREAMP WITH GATE
Welcome your CHUG Life. The Chug Pedal is born from years of testing thousands of pedals, amplifiers and plugins to create a unique perspective resulting in the Ultimate Metal Preamp Pedal, simply and effectively named: CHUG.
SPECIFICATIONS
| PEDAL TYPE | GAIN/DISTORTION |
| POWER CONNECTORS | 5.33MM BARREL |
| POWER SUPPLY | NOT INCLUDED (9VDC 100MA MINIMUM) |
| CURRENT DRAW | 85MA |
| BATTERY | NONE |
| INPUT JACK | 1/4'' |
| OUTPUT JACK | 1/4'' |
| WATTAGE | N/A |
| GATE | YES |
| SPEAKER | N/A |
| INPUT OHM | 1 MΩ |
| OUTPUT OHM | 260Ω |
| OUTPUT LEVEL | 5 DBU |
| EQ | BASS -TREB - MID - DEPTH - PRESENCE |
| BYPASS | BUFFERED BYPASS |
| TEST REFERENCE LEVEL | 0 DBU = 0.775 VRMS |
| ADDITIONAL FUNCTIONS | INPUT LF/HF GAIN FILTER |
| DIMENSIONS | 120MM X 70MM (4.72 X 2.75 INCHES ) |
TESTED AND APPROVED 3RD PARTY POWER SUPPLIES
| BOSS | PSA(XXX)S |
| DUNLOP | ECB-003 |
| DIGITECH | PS0913DC-01 |
| VOODOO LABS | PEDAL POWER SERIES (9VOLTS ONLY !) |
The CHUG pedal circuit has been optimally voiced as a “pre-amp”. This means that it is designed to take the place of the High Gain preamplifier circuit channel in a guitar amplifier. The signal starts by passing through a network of High Frequency and Low Frequency filters while offering the ability to add an enormous amount of Gain and overdrive. Equalization options are extensive with Bass, Middle and Treble controls preceding Depth and Presence for true amplifier feel. A keenly programmed noise Gate fed by the input signal and indicated by change in color of the LED is followed by the output that works like a master volume. It is housed in an all metal “built like a tank” enclosure with top quality jacks and switches. Power supply is not included (9VDC 100MA minimum). The sound, flexibility and overall style has been supremely tailored for maximum CHUG!
